The SA200 series comprises spherical outer ring bearings with a flat end on one side and an eccentric locking sleeve on the other. The difference from the UEL200 series is that the inner ring lacks a raised step on one side, resulting in a flat end face and a more compact installation footprint. Locking onto the shaft is achieved via the eccentric sleeve, allowing for easy assembly and disassembly, and is suitable for single-direction rotation applications. The spherical structure of the outer ring provides inherent self-aligning capability, compensating for misalignment during installation.
With double-sided sealing protection to prevent the ingress of dust and impurities, these bearings are primarily designed to carry radial loads whilst being capable of withstanding minor bidirectional axial loads; they are classified as a lightweight specification. They are compatible with various standard spherical roller bearing housings, including P, F, FL and T types.
They are commonly used in agricultural machinery, light-duty conveyors, textile machinery, small fans and light-duty transmission mechanisms.

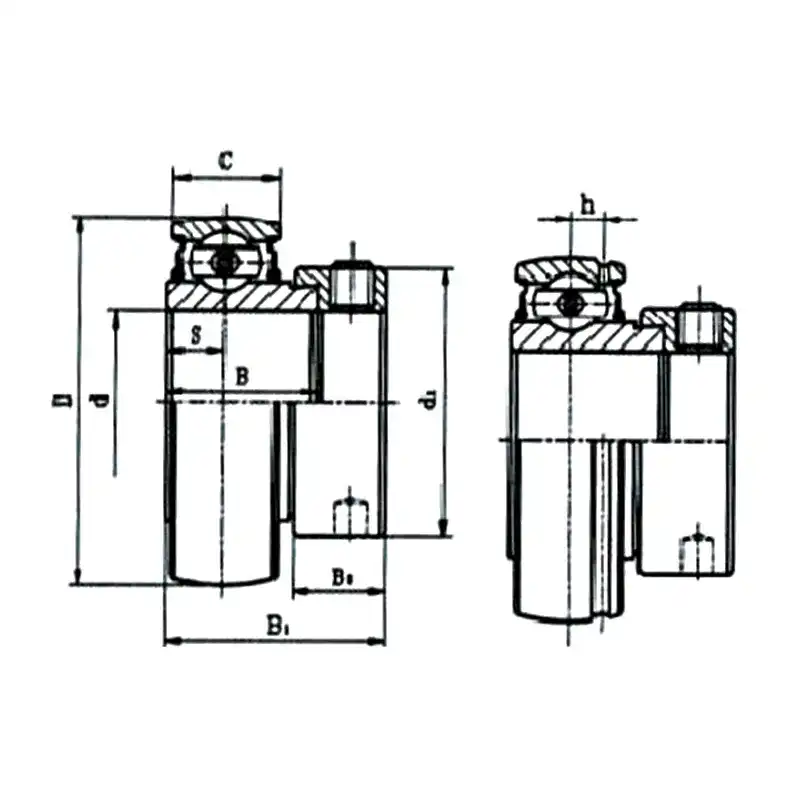

| Bearing code | Shaft diameter d | Overall Dimensions（mm） | Rated load（KN） | Weight （kg） |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | B | C | B1 | S | H | B3 | d1 | Cr | Cor | |||
| SA212 | 60 | 110 | 33.4 | 24 | 53.1 | 13.5 | 8 | 22.3 | 84.2 | 47800 | 32800 | 1.26 |
| SA211 | 55 | 100 | 32.5 | 24 | 48.4 | 12 | 7.2 | 20.7 | 76.2 | 43550 | 29200 | 1.04 |
| SA210 | 50 | 90 | 30.2 | 20 | 43.7 | 11 | 6.5 | 18.3 | 69.9 | 35100 | 23200 | 0.7 |
| SA209 | 45 | 85 | 30.2 | 19 | 43.7 | 11 | 6.5 | 18.3 | 63.5 | 31850 | 20800 | 0.66 |
| SA208 | 40 | 80 | 30.2 | 18 | 43.7 | 11 | 6.2 | 18.3 | 60.3 | 29600 | 18200 | 0.61 |
| SA207 | 35 | 72 | 25.4 | 17 | 38.9 | 9.5 | 5.7 | 17.5 | 55.6 | 25700 | 15200 | 0.45 |
| SA206 | 30 | 62 | 23.8 | 16 | 35.7 | 9 | 5 | 15.9 | 44.5 | 19500 | 11200 | 0.3 |
| SA205 | 25 | 52 | 21.5 | 15 | 31 | 7.5 | 4.3 | 13.5 | 38.1 | 14000 | 7880 | 0.19 |
| SA204 | 20 | 47 | 21.5 | 14 | 31 | 7.5 | 4 | 13.5 | 33.3 | 12800 | 6650 | 0.16 |
| SA203 | 17 | 40 | 19.1 | 12 | 28.6 | 6.5 | 3.6 | 13.5 | 27.2 | 9550 | 4780 | 0.1 |
| SA202 | 15 | 40 | 19.1 | 12 | 28.6 | 6.5 | 3.6 | 13.5 | 27.2 | 9550 | 4780 | 0.12 |
| SA201 | 12 | 40 | 19.1 | 12 | 28.6 | 6.5 | 3.6 | 13.5 | 27.2 | 9550 | 4780 | 0.13 |
